    Lenovo DE2000H 存储代理 维修 扩容

    • Lenovo ThinkSystem DE Series 3.84TB 1DWD 2.5" SSD FIPS 2U24, 4XB7A88469Lenovo ThinkSystem DE Series 3.84TB 1DWD 2.5" SSD FIPS 2U12, 4XB7A88501AttributeSpecificationForm factorDE2000H 2U24 SFF controller enclosure (Machine Type 7Y71): 2U rack mount.DE2000H 2U12 LFF contro
    立即咨询
    24小时咨询热线153-3838-0807

    产品详情介绍

    温馨提示：冠峰科技提供ThinkSystem DE2000H产品的原厂代理，产品销售报价，故障维修，续保延保服务；欢迎咨询

    • Lenovo ThinkSystem DE Series 3.84TB 1DWD 2.5" SSD FIPS 2U24, 4XB7A88469

    • Lenovo ThinkSystem DE Series 3.84TB 1DWD 2.5" SSD FIPS 2U12, 4XB7A88501


    AttributeSpecification

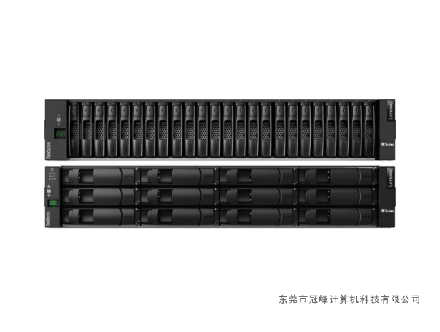

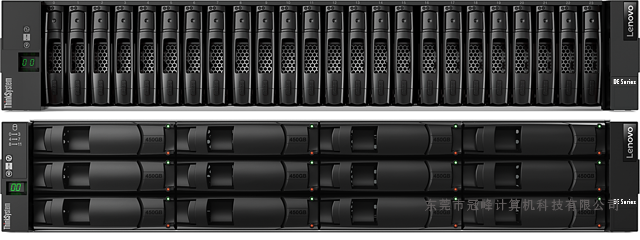

    Form factor

    • DE2000H 2U24 SFF controller enclosure (Machine Type 7Y71): 2U rack mount.

    • DE2000H 2U12 LFF controller enclosure (Machine Type 7Y70): 2U rack mount.

    • DE240S 2U24 SFF expansion enclosure (Machine Type 7Y68): 2U rack mount.

    • DE120S 2U12 LFF expansion enclosure (Machine Type 7Y63): 2U rack mount.

    Controller configurationDual active-active controller configuration with automatic load balancing.
    RAID levelsRAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools.
    Note: RAID 3 can be configured only through the CLI.
    Controller system memory16 GB per system (8 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes battery for destaging to flash).

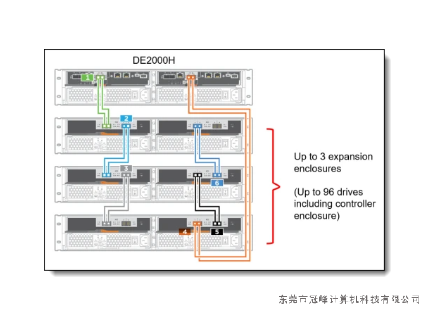

    Expansion enclosure support

    • DE2000H 2U24 SFF controller: 3x DE120S or 3x DE240S

    • DE2000H 2U12 LFF controller: 3x DE120S or 3x DE240S

    • Expansion enclosures may be mixed up to a maximum of 3 expansion enclosures

    Drive baysUp to 4 enclosures per system (Controller unit with up to 3 expansion units):

    • Up to 48 LFF hot-swap drive bays (Up to 4x 2U12 LFF enclosures)

    • Up to 96 SFF hot-swap drive bays (Up to 4x 2U24 SFF enclosures)

    Intermix of 2U24 SFF and 2U12 LFF enclosures is supported.
    Drive technology

    • 12 Gb SAS and NL SAS HDDs and FIPS HDDs, 12 Gb SAS SSDs and FIPS SSDs.

    • Intermix of HDDs and SSDs is supported within a system.

    • Intermix of HDDs and SSDs is not supported within a volume group or disk pool.

    • Intermix of FIPS drives and non-FIPS drives is supported within a system.

    • Intermix of FIPS drives and non-FIPS drives is not supported within a volume group or disk pool.

    Drive expansion connectivity

    • 2x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each of two controllers in the controller enclosure for the attachment of the expansion enclosures.

    • 4x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each of two I/O modules in the expansion enclosure for the attachment to the controller enclosure and daisy chaining of the expansion enclosures.

    Drives2U24 SFF drives:

    • 10K rpm SAS HDDs

    • 10K rpm SAS FIPS HDDs

    • SAS SSDs (1 DWD)

    • SAS SSDs (3 DWD)

    • SAS FIPS SSDs (3 DWD)

    2U12 LFF drives:

    • 7.2K rpm NL SAS HDDs

    • 7.2K rpm NL SAS FIPS HDDs

    • SAS SSDs (3 DWD)

    • SAS FIPS SSDs (3 DWD)

    Storage capacityAll SFF drives: Up to 1.47 PB (96x 15.36 TB SFF SSDs)
    All LFF drives: Up to 864 TB (48x 18TB LFF HDDs)
    Host connectivity Host connectivity ports provided using host interface cards (HICs) (per controller enclosure with two controllers):

    • 4x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (2 ports per controller)

    • 8x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (4 ports per controller)

    • 8x 10/25 Gb iSCSI SFP28 host ports (DAC or SW fiber optics [LC]) (4 ports per controller)

    • 8x 8/16/32 Gb FC SFP+ host ports (SW fiber optics [LC]) (4 ports per controller)

    • 4x 1/10 Gb iSCSI RJ-45 host ports (2 ports per controller)

    Note: The DE2000H controller no longer offers base ports. Host connectivity is provided via the HICs.

    • Supported protocols: FC: 32 Gbps, 16 Gbps, 8 Gbps, 4 Gbps

    Host operating systemsMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
    Standard software featuresDynamic Disk Pools, SSD read cache, snapshots (up to 128 targets), volume copy, thin provisioning (DDP only), encryption (requires optional FIPS drives), and data assurance.
    Optional software featuresSnapshots (up to 512 targets), asynchronous mirroring.
    Performance*

    • Up to 100 000 random read IOPS (4 KB blocks).

    • Up to 35 000 random write IOPS (4 KB blocks).

    • Up to 3 GBps sequential read throughput (64 KB blocks).

    • Up to 0.9 GBps sequential write throughput (64 KB blocks).

    Configuration maximums**

    • Maximum storage capacity: 1.47 PB

    • Maximum number of logical volumes: 512

    • Maximum logical volume size: 4 PB

    • Maximum thin-provisioned logical volume size (DDP only): 256 TB

    • Maximum number of drives in a RAID volume group:

      • RAID 0, 1/10: 96

      • RAID 3, 5, 6: 30

    • Maximum number of DDP arrays: 20

    • Maximum number of drives in a DDP array: 96 (11 drives minimum)

    • Maximum SSD read cache size: 4 TB

    • Maximum number of hosts: 256

    • Maximum number of snapshots: 512 (requires an optional license)

    • Maximum number of mirroring pairs: 32 (requires an optional license)

    CoolingRedundant cooling with the fans that are built into power supplies.
    Power supplyTwo redundant hot-swap 913 W (100 - 240 V) Platinum AC power supplies.
    Hot-swap partsControllers, I/O modules, drives, power supplies, and SFP+ transceivers.

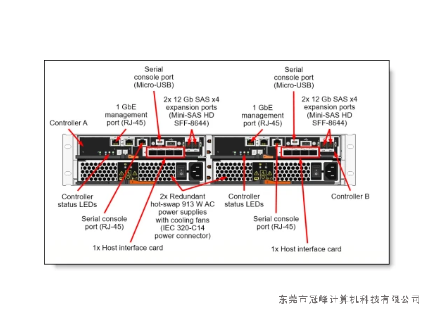

    Management ports

    • 1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management.

    • 2x Serial console ports (RJ-45 and Micro-USB) for system configuration.

    • In-band management via I/O path.

    Management interfacesSystem Manager web-based GUI; SAN Manager standalone GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity.
    Security featuresSecure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication.
    Warranty and supportThree-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. Also available are 9x5 NBD onsite response, 24x7 coverage with 2-hour or 4-hour onsite response, or 6-hour or 24-hour committed repair (select areas), YourDrive YourData, Premier Support, and 1-year or 2-year post-warranty extensions.
    Software maintenanceIncluded in the base warranty and any Lenovo warranty extensions.
    Dimensions2U24 SFF enclosure:

    • Height: 85 mm (3.4 in.)

    • Width: 449 mm (17.7 in.)

    • Depth: 553 mm (21.8 in.)

    2U12 LFF enclosure:

    • Height: 85 mm (3.4 in.)

    • Width: 447 mm (17.6 in.)

    • Depth: 483 mm (19.0 in.)

    Weight

    • DE2000H 2U24 SFF controller enclosure (7Y71): 24.59 kg (54.2 lb)

    • DE2000H 2U12 LFF controller enclosure (7Y70): 28.78 kg (63.4 lb)

    • DE240S 2U24 SFF expansion enclosure (7Y68): 27.44 kg (60.5 lb)

    • DE120S 2U12 LFF expansion enclosure (7Y63): 27.12 kg (59.8 lb)

    ThinkSystem DE Hybrid Storage interactive 3D Tour
    https://lenovopress.com/lp0957-thinksystem-de-hybrid-interactive-3d-tour
